Bases For Rifles

Lynx offers a large range of steel bases suitable for different models of rifles and revolvers. PLEASE NOTE that "SM" prefix denotes aluminium.

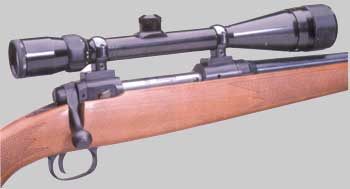

Two piece bases allow easier cartridge loading access. One-piece bases provide greater rigidity and a parallel platform on hand-worked actions. Extended bases solve eye relief scope mounting problems caused by compact scopes on long actions.

Lynx bases are made of lightweight steel machined from solid bar stock. The studs locking the rings to the bases withstand shock forces of more than 4,400lbs

"H" Bases use a Hex Key to lock the Dovetail clamps.
"N" Bases use a QD Nut to lock the Dovetail clamps.
"L" Bases use a Lever to lock the dovetail clamps.

Anschutz
BSA
BRNO 300 & 500 Series
Browning
Carl Gustaf
CZ
Dovetailed .22 & Smallbore
FN Bases (refer to Mauser)
H&R
Heym
Howa
Krico
M1 Carbine
Mannlicher Schonauer
Marlin
Mauser
Musgrave
M-17
Omark
Picatinny Rail Material
P14
Parker Hale
Remington
Rover
Ruger
Sako
Sauer
Stevens
Savage
.303 Lee Enfield (S.M.L.E)
Sporter - Refer to Parker Hale
Steyr-Mannlicher
Tikka - T3
Titian
Voere
Weatherby
Winchester
Zastava

Anschutz

(Fits all common .22 small bore actions) 3/8 (10mm) Dovetail QD 2P (May be reversed for better eye relief with Target scopes) 1842H

BSA

CF2 & Monarch 2P 1839
CF2 & Monarch 2P Ext 4051
BSA Full Bore Rifle 19mm Dovetail 2P 3040H

BRNO 300 & 500 Series

Combination (Under & Over) QD 1P 1911N
Combination (Under & Over) Lever 1P 1911L
Combination (Under & Over) Hex 1P 1911H

Browning

A Bolt SA (.223, 22/250, .243, .308, 7mm-08, .257R) S/S 2P 1856
A Bolt LA/SA 1P 1855
A Bolt LA/SA 2P Ext 4053
BAR, BLR, 81 & BLR Lightning LA 1P 1810
BL-22 Lever 1P 1863L
BL-22 QD 1P 1863N

Carl Gustaf

1600 (Mark X, Zastava, Parker Hale Safari, etc.) 2P 1835

CZ

527, FOX (.22H, .222, .223, and early Model 1 .22's with 14mm dovetails) 2P 1918H
537 SA (.243, .308)CZ550 & ZKK 601 (.223, .243 & .308) QD 1P (Detatchable Mag use M.A. Base) 1815N
537 SA (.243, .308)CZ550 & ZKK 601 (.223, .243 & .308) Hex 1P (Detatchable Mag use M.A. Base)

1815H
537MA, CZ550 & ZKK 600 (.270, 30/06, 7x57 & 7x64) QD 1P 1823N
537MA, CZ550 & ZKK 600 (.270, 30/06, 7x57 & 7x64) Hex 1P 1823H
537, CZ550 & ZKK600, 601, 602 QD 2P Ext 4058N
537, CZ550 & ZKK600, 601, 602 Lever 2P Ext 4058L
537, CZ550 & ZKK600, 601, 602 Hex 2P Ext 4058H
537,CZ550 & ZKK 600, 601, 602 Hex 2p 1909H
537,CZ model, conversion base, d/tail to weaver - aluminium 1p 14803
Magnum models, conversion base , d/tail to weaver - aluminium 1p 14804

Dovetailed .22 and Smallbore

General Purpose 9.5 - 11mm 3/8 Dovetail. (May be reversed for better eye relief with target scopes) QD 2P 1842H

FN Bases (refer to Mauser)

Heym

SR20N 2P 1835

Howa

SA/LA 2P 1839

SA/LA 2P EXT 4051

Krico

600 (.17, .222, .223, .243, .308) SA 1P 1921
700 (All Series) (6.5x55, 7mm R Mag, 30/06, 8x68) LA 1P

1922
600, 700 (All Series) LH/RH, LA/SA 2P 1913
600, 700 (All Series) LH/RH, LA/SA 2P Ext 4056

M1 Carbine

M1 Carbine (Universal) 1P 1862

Mannlicher Schonauer

Mannlicher Schonauer, Undrilled (Gunsmith Base) 1P 2923
Mannlicher Schonauer (Requires front reciever ring to be drilled and tapped M5) 1P 1923

Marlin

Marlin MR7 30.06, 270 2P 1839
Marlin 1984 (.22 Mag, .357 Mag, .44 Mag) 1P 1826
Marlin 1895-336 (30/30, .35 Rem, 45/70, .375 H&H, .444 & Model 9 carbine) 1P 1818
Marlin 39A Lever action .22 1P 1830
Model 336, 94 - accepts weaver rings , Aluminium 1P SM5536

Mauser

98 EX-MILITARY 1P 2928
Small Ring 1P 1881
1996 Straight Pull (New Model) 2P 1839
96, M38 6.5mm x 55 Ex-Military (Requires 0.300" rear hole spacing, action to be D/T 6-48) 1P 1802
96, M38 6.5mm x 55 Ex-Military (Requires 0.300" rear hole spacing, action to be D/T 6-48) 2P 1931
96, M38 6.5mm x 55 Sporter (For Sporter Deluxe, charger guide removed, action to be D/T 6-48) 1P 1930
96, M38 6.5mm x 55 Sporter Undrilled 1P 2930
98 Ex-Military 1P (Requires action to be drilled and tapped 6-48) 1809
98 Ex-Military 2P Ext (FN Drilling, Requires action to be D/T 6-48, 0.500" Rear hole spacing) 4061
98 Ex-Military 2P (German Drilling, Requires action to be D/T 6-48, 10mm Rear hole spacing) 1934
98 Ex-Military 2P Ext(German Drilling, Requires action to be D/T 6-48, 10mm Rear hole spacing) 1935
98 Sporter 1P (Requires charge guide removal, action to be drilled and tapped 6-48 - 0.300" rear hole spacing.) 1928
Mauser FN (Zastava Mark X, Carl Gustaf 1600, etc) 1P 1816
Mauser FN (Zastava Mark X, Carl Gustaf 1600, etc) 2P 1835

Musgrave

Model 90 Mini/Light/Standard/Std 2P 1834
Magnum 1P 3044
Magnum 2P Ext 3058

M-17

M-17 Sporter, Sight ears removed (Requires action to be drilled and tapped 6-48) 1P 2207
M-17 Original (Requires action to be drilled and tapped 6-48) 1P 2209

Omark

Omark Rail Picatinny 20 MOA Steel 1P 2606M
Omark 7.62mm LH/RH (Action must be drilled and tapped 6-48) 1P 2218

Picatinny Rail Material

Picatinny Rail 180MM 1/2" SQ 1P 7118K

P14

P14 - British .303 (Original) (Requires action to be drilled and tapped 6-48) 1P 2209
P14 - British .303 Sporter. Forewood removed. (Requires action to be drilled and tapped 6-48) 1P 2207

Parker Hale

Deluxe (Early model - Based on M98 Action) 1P 1937
FN & Spanish action (Mauser FN, Zastava Mark X, Carl Gustaf 1600) 2P 1835
Midlander (Modified Springfield design) 1P 1817
Midlander (Modified Springfield design) 2P Stainless Steel 3060
Safari Early Action (Mauser FN, Zastava Mark X, Carl Gustaf 1600) 1P 1816
Safari Deluxe (Early model - Based on M98 action) 1P 1942
M82 2P 1835
TX-1200 (Target) 1P 1939
Fits P/Hale rifles with Dovetail - 19mm 2P 3040H

Remington

REM700 SA/LA Weaver Base ALUM 7" long 60 THOUS MACHINED IR 1P 1304M
700, 40, 78 (CMC Howa, Weatherby V & Vanguard) LA/SA 2P 1839
700, 40, 78 (CMC Howa, Weatherby V & Vanguard) LA/SA 2P Ext 4051
600, 660, & NO.7 1P 1828
4, 6, 7400, 7600 1P 1829
788 (.222 Mag, .22/250, 30/30) LA 1P 1805
7600,7400,7615 Aluminium Weaver base 1P SM5504

Rover

Rover LA/SA 2P 1839

Ruger

96 Lever Action 1P 2229
M77 & M77 Mark II RH (.223, 220S, 22-250, .243, .308) SA 1P 2221H
M77 & M77 Mark II RH (.223, 220S, 22-250, .243, .308) SA 1P Stainless Steel 2321H
M77 & M77 Mark II RH (25/06, 7mm R Mag, .300 W Mag, .338 W Mag) LA 1P 2222H
M77 & M77 Mark II RH (25/06, 7mm R Mag, .300 W Mag, .338 W Mag) LA SF 1P 2322H
Mini-14 (181 to current series) Stainless 1P 1882H

Sako

461, 579, 61R Hex Clamping 2P Ext 2P 4055H
461, 579, 61R Hex Clamping 2P 2P 1940H

Sauer

202 2P 1964

Stevens

SA/LA Blue 2P 1839AC
SA/LA Stainless Steel 2P 2839AC

Savage

Long action models 110, 111, 112, 116 RH LA 1P 1832
Long action models 110, 111, 112, 116 RH LA 1P - Stainless Steel 2832
Long action models 110, 111, 112, 116 RH & LH LA 2P 1838
Long action models 110, 111, 112, 116 RH & LH LA 2P - Stainless Steel 2338
Long action models 110, 111, 112, 116 RH & LH LA 2P Ext 4041
Long action models 110, 111, 112, 116 RH & LH LA 2P Ext - Stainless Steel 4050
Short Action Models 10, 11, 12, 16 RH SA 1P 1833
Short Action Models 10, 11, 12, 16 ACCU TRIGGER RH & LH SA 2P 1839AC
Short Action Models 10, 11, 12, 16 ACCU TRIGGER RH & LH SA 2P - Stainless Steel 2839AC
Model 340 Side Mount accepts Weaver Rings 1P Aluminium SM4460

.303 Lee Enfield (S.M.L.E)

S.M.L.E. I, II, III (.303) 1P (3 Base holes must be drilled and tapped 6-48 on centre axis) 1814
S.M.L.E IV, V (.303 Jungle Carbine) 1P (Must be drilled and tapped 6-48 on front reciever, M3 on cross bar) 1954
S.M.L.E IV, V (.303 Jungle Carbine) 1P Side mount (Must be drilled and tapped to Parker-Hale Sporter model IV pattern) 1938
S.M.L.E MK IV MK V - Side Mount no Drill/Tap, accepts Weaver Rings 1P Aluminium SM8564

Sporter - Refer to Parker Hale Midlander

Steyr-Mannlicher

Steyr-Mannlicher (M, & ST) 2P 1925
Steyr-Mannlicher (M, & ST) SBS / Pro Hunter 2P Ext 1855
Steyr-Mannlicher Professional 2P 1925
Steyr-Mannlicher (SL&L) (.222, .223, 5.6x50 Mag, 5.6x57, .243, .308) 2P 1924

Tikka - T3

M55, M558 & M65, M658 QD 2P Ext 4807N
M55, M558 & M65, M658 Lever 2P Ext 4807L
M55, M558, M590 & M65, M658, M690 Screw on 2P 4042
M55, M558, M590 & M65, M658, M690 Screw on 2P Ext 4057
T3 - Dovetail Base 2P 1918H

Titian

Titian by RWS BLUE 1839AC
Titian by RWS S/S 2339AC

Voere

Titan II All models 2156, 2165 2P 1835

Weatherby

Vanguard SA (.223, 22/250, .243 & .308) 1P 1825
MK XXII - New model 22 cal rifle - Fits 10mm dovetail 2P 1842N

Winchester

70 SA (Featherweight, Lightweight, Ranger 1P 1803
70 SA (Featherweight, Lightweight, Ranger) 1P Stainless Steel 2803
70 SA/STD 2P 1834
70 SA/STD 2P Ext 4052
70 SA/STD 2P Stainless Steel 3059
70 Magnum (300WM, 338WM, 300 H&H Mag, .375 H&H Mag above Ser.#700,000, XTR .375 H&H) 1P 3044
70 Magnum (300WM, 338WM, 300 H&H Mag, .375 H&H Mag above Ser.#700,000, XTR .375 H&H) 2P Ext 3058
94, (30/30, 7-30 Waters) Angle eject 2P 1848
94/22 QD 1P 1863L

Zastava

Zastava Mini Mauser 1P 4091
Zastava Mauser LA 1P 1816
Zastava Mauser LA 2P 1835
